GRP grating 60 heavy-duty, mesh 38 × 38 mm
Height: 60 mm, mesh inner dimension: 26 × 26 mm
GRP Grating 60 Heavy Duty – our tallest and strongest grating for extreme loads.

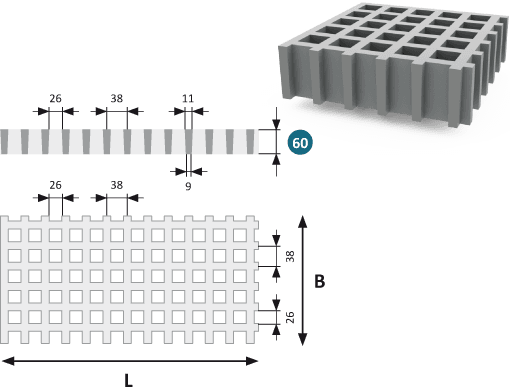

GRP Grating 60 Heavy Duty is our most robust grating, developed to withstand extremely high loads and harsh environments. A profile height of 60 mm and 38 × 38 mm mesh (26 × 26 mm inner size) provide maximum load-bearing capacity and stability – naturally combined with all the advantages of GRP material: low weight, corrosion resistance and long service life without maintenance.
Features and benefits:
- Our highest grating – 60 mm – for extremely high load capacity
- Heavy duty mesh 38×38 mm (26×26 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 23.284 | 2 x F | 124.185 | 3 x q | |
| 450 | 10.278 | 3 x F | 36.545 | 4 x q | |
| 600 | 5.761 | 4 x F | 15.364 | 5 x q | |
| 750 | 3.679 | 5 x F | 7.850 | 7 x q | |
| 900 | 2.551 | 6 x F | 4.536 | 8 x q | |
| 1.000 | 2.065 | 7 x F | 3.305 | 9 x q | |
| 1.200 | 1.433 | 8 x F | 1.910 | 10 x q | |
| 1.300 | 1.220 | 8 x F | 1.502 | 10 x q | |
| 1.400 | 1.052 | 8 x F | 1.202 | 10 x q | |
| 1.500 | 916 | 8 x F | 977 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.000 | 1.220 | 50,4 |
| 1.988 | 998 | 50,4 |
Other dimensions are available on request. Contact us for more info.
