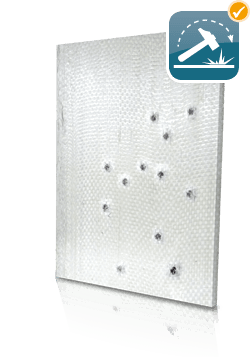

GRP Ballistic panels
Reinforced ballistic panels made from high quality GRP.
GRP Ballistic Panels – lightweight protection against bullets and shrapnel.
GRP ballistic panels are reinforced protective panels made from high-quality glass fiber reinforced plastic (GRP), designed to provide effective protection against bullets and shrapnel. The panels can be used as standalone protection or in combination with other materials to reinforce existing walls, vehicles, or facilities.
With protection level 7 according to European standards (against 7.62 × 51 mm and 5.56 × 45 mm calibers), these panels are a cost-effective alternative to traditional armor, with significantly lower weight and easier handling. Thanks to an advanced manufacturing process, impacts are absorbed so that projectiles are captured within the panel – protecting both people and property without dangerous penetration.We offer several solutions and panel thicknesses depending on the required level of protection.
Features & benefits
- Class 7 bullet resistance – tested against 7.62×51 mm and 5.56×45 mm calibers
- Effective splinter and bullet trap technology – stops and binds the projectile
- Lightweight compared to traditional armor – easy installation and transportation
- Can be used as stand-alone protection or in combination with other materials
- Corrosion-resistant and maintenance-free – long service life even in exposed environments
- Modular solution – can be customized according to space and protection requirements
- Available in different protection levels and dimensions
Areas of application
- Military and police infrastructure
- Bulletproof rooms, security cages and checkpoints
- Vehicles, containers or technical installations
- Protection against sabotage, blast risk and dangerous projectile trajectories
- Public environments with high security requirements
Bullet class 7 – tested calibers
- 7.62 x 51 mm – bullet type DM111, 9.55 ± 0.1 g
- 5.56 x 45 mm – bullet type SS109, steel penetrator, 4.00 ± 0.1 g
| Technical data | ||
|---|---|---|
| Thicknesses | 13 mm ⁄ 13 mm / 50 mm Air / 13 mm | |
| Weight (kg) | 76 kg/m2 | |
| Application temperature | -30 to +60 °C | |
| Fire class | DIN 4102 | B2 |
| ASTM E-84-98 | <25, class A | |
| UL94 V | V 0 | |
| Length | 2.000, 2.500, 3.000 up to 12.000 mm | |
| Width | 1000 mm | |
| Bending strength | 320 MPa | |
| Breaking strength | 300 MPa | |
| Compressive strength | 420 MPa | |
| E-modulus | 30.000 | |
| Impact strength IZOD | 180 kJ/m² | |
| Water intake | < 0,15 % | |
VPAM PM 2007 – Guideline for bullet-resistant plate-like materials, published by the “Association of Testing Centers for Anti-Attack Materials and Constructions” (VPAM), to the VPAM belong: Beschussamt Wien (AT); Armaments Directorate, Office of Defense Technology, Felixdorf (AT); Royal Military Academy, Dept. of Weapon Systems & Ballistics (ABAL), Brussels (B); University of Bern, Institute of Legal Medicine, Bern (CH); armasuisse, Science & Technology, Thun (CH), Beschellamt Mellrichstadt (D); Beschussamt Ulm (D); German Police College, Police Institute (PTI), Münster (D); vts Politie Nederland, Apeldoorn (NL); TNO Defense, Security and Safety, Rijswijk (NL); Politiets data – og materielltjeneste, Oslo (N). VPAM PM 2007 / APR 2006 Class 4, .357 Mag / .44 Mag without splintering (NS)
| Technical data | ||
|---|---|---|
| Thickness | 13 mm thick | |
| Weight (kg) | 25.5 kg/m2 | |
| Application temperature | -30 to +60 °C | |
| Fire class | DIN 4102 | B2 |
| ASTM E-84-98 | <25, class A | |
| UL94 V | V 0 | |
| Length | 2.000, 2.500, 3000 mm or made up to 12.000 mm |
|
| Width | 1000 mm | |
| Bending strength | 320 MPa | |
| Tensile strength | 300 MPa | |
| Compressive strength | 420 MPa | |
| E-modulus | 30.000 | |
| Impact strength IZOD | 180 kJ/m² | |
| Water absorption | < 0,15 % | |
