GRP grating 30, mesh 100 × 25 mm

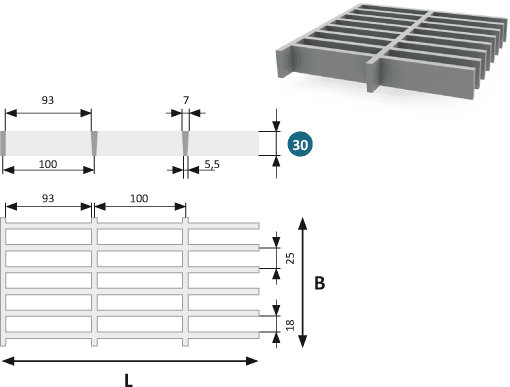

Height: 30 mm, mesh inner dimension: 93 × 18 mm
GRP Grating 30 – grating with an elongated mesh.
GRP Grating 30 with 100 × 25 mm mesh (93 × 18 mm inner size) and a profile height of 30 mm is a robust and drainage-optimized grating made of glass fiber reinforced plastic (GRP). The elongated mesh structure makes it particularly effective in environments where fast water runoff is important, while the height provides good load-bearing capacity under load.
The grating combines low weight with chemical and corrosion resistance, making it ideal for industrial environments, water and wastewater facilities, walkways and service platforms – both indoors and outdoors.
Features and benefits:
- 30 mm height – provides stability and good load bearing capacity
- Long narrow mesh 100×25 mm (93×18 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 741 | 2 x F | 3.952 | 3 x q |
| 450 | 327 | 3 x F | 1.163 | 4 x q |
| 600 | 183 | 4 x F | 489 | 5 x q |
| 750 | 117 | 5 x F | 249 | 7 x q |
| 900 | 81 | 6 x F | 144 | 8 x q |
| 1.000 | 66 | 7 x F | 105 | 9 x q |
| 1.200 | 46 | 8 x F | 61 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 3.007 | 1.007 | 15,6 |
Other dimensions are available on request. Contact us for more info.
