GRP grating 30 Micro, mesh 20 × 20 mm

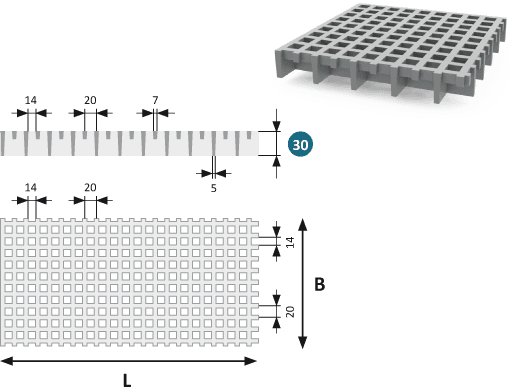

Height: 30 mm, mesh inner dimension: 14 × 14 mm
GRP Grating 30 Micro – dense and stable grating for high safety and load capacity.
GRP Grating 30 Micro is a robust and fine-mesh grating made of glass fiber reinforced plastic (GRP). With a height of 30 mm and a mesh size of 20 × 20 mm (14 × 14 mm inner size), it combines high load-bearing capacity with a dense structure that effectively prevents small objects or tools from falling through.
The grating is particularly suitable for walkways, platforms and work environments where both personal safety and structural strength are essential. Its chemical resistance and corrosion-free properties make it a reliable choice in demanding environments such as water treatment plants, process industries, technical rooms and electrical installations.
Features and benefits:
- 30 mm height – provides high load capacity and good stability
- Fine mesh, 20×20 mm (14×14 mm internally) – prevents small objects from falling
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) | Concentrated load (kg) |
Safety factor | Distributed load (kg/m2) |
Safety factor | |
|---|---|---|---|---|---|
| 300 | 1.760 | 2 x F | 9.420 | 3 x q | |
| 450 | 780 | 3 x F | 2.774 | 4 x q | |
| 600 | 437 | 4 x F | 1.166 | 5 x q | |
| 750 | 279 | 5 x F | 595 | 7 x q | |
| 900 | 193 | 6 x F | 344 | 8 x q | |
| 1.000 | 156 | 7 x F | 250 | 9 x q | |
| 1.200 | 108 | 8 x F | 145 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.047 | 1.247 | 18 |
| 4.007 | 1.007 | 18 |
| 3.687 | 1.247 | 18 |
| 3.007 | 1.007 | 18 |
| 2.007 | 1.007 | 18 |
Other dimensions are available on request. Contact us for more info.
