GRP Grating 50 – extra high grating for very heavy loads and demanding environments.

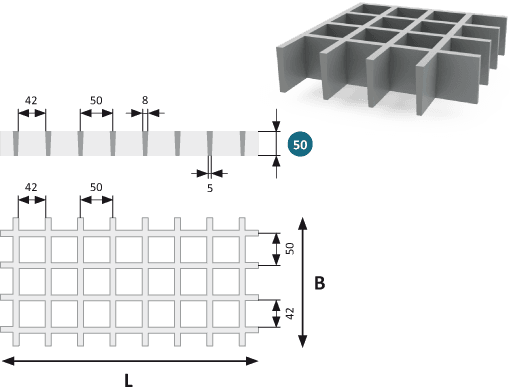

GRP Grating 50 is an extremely heavy-duty grating made of glass fiber reinforced plastic (GRP), with a height of 50 mm and 50 × 50 mm mesh (42 × 42 mm inner size). The grating is designed to withstand very high loads while offering low weight, corrosion and chemical resistance – making it ideal for heavy and demanding industrial environments.
The high profile of the grating provides increased load-bearing capacity and makes it particularly suitable for walkways, platforms and flooring solutions in heavy industry, the energy sector and port facilities.
Features and benefits:
- Extra high profile – 50 mm – maximum strength and load bearing capacity
- Mesh 50×50 mm (42×42 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 6,812 | 2 x F | 36.332 | 3 x q | |
| 450 | 3.007 | 3 x F | 10.691 | 4 x q | |
| 600 | 1.685 | 4 x F | 4.495 | 5 x q | |
| 750 | 1.076 | 5 x F | 2.296 | 7 x q | |
| 900 | 746 | 6 x F | 1.327 | 8 x q | |
| 1.000 | 604 | 7 x F | 966 | 9 x q | |
| 1.200 | 419 | 8 x F | 559 | 10 x q | |
| 1.300 | 356 | 8 x F | 439 | 10 x q | |
| 1.400 | 307 | 8 x F | 351 | 10 x q | |
| 1.500 | 268 | 8 x F | 285 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.000 | 1.800 | 23,7 |
| 3.660 | 1.220 | 23,7 |
| 1.990 | 1.020 | 23,7 |
Other dimensions are available on request. Contact us for more info.
