GRP Grating 14 Micro, mesh 20×20 mm
Height: 14 mm, internal mesh size: 13×13 mm
GRP Grating 14 Micro, mesh 20×20 mm
Height: 14 mm, internal mesh size: 13×13 mm
GRP grating 15, mesh 51×51 mm
Height: 15 mm, internal mesh size: 44×44 mm
GRP grating 25, mesh 20×20 mm
Height: 25 mm, internal mesh size: 13×13 mm
GRP grating 25 Micro, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP Grating 25, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP grating 25, mesh 83×83 mm
Height: 25 mm, Mesh inner dimensions: 76×76 mm
GRP grating 30, mesh 38×38 mm
Height: 30 mm, Mesh inner dimensions: 31×31 mm
GRP grating 30 Micro, mesh 20 × 20 mm
Height: 30 mm, mesh inner dimension: 14 × 14 mm
GRP Gallerdurk 30 Micro, Maska 8x8mm
Height: 30 mm, outer mesh dimension (4 meshes): 30 × 30 mm
GRP grating 30, mesh 100 × 25 mm
Height: 30 mm, mesh inner dimension: 93 × 18 mm
GRP Grating 30 Heavy Duty, mesh 38 × 38 mm
Height: 30 mm, mesh inner dimension: 28 × 28 mm
GRP grating 35 Heavy Duty, mesh 38 × 38 mm
Height: 35 mm, mesh inner dimension: 28 × 28 mm
GRP grating 38, mesh 38 × 38 mm
Height: 38 mm, mesh inner dimension: 31 × 31 mm
GRP grating 38 Micro, mesh 20 × 20 mm
Height: 38 mm, mesh inner dimension: 13 × 13 mm
GRP Grating 38, mesh 100 × 25 mm
Height: 38 mm, mesh inner dimension: 88 × 17 mm
GRP grating 40, mesh 83 × 83 mm
Height: 40 mm, mesh inner dimension: 76 × 76 mm
GRP grating 50, mesh 50 × 50 mm
GRP grating 50, mesh inner dimension 42 × 42 mm
GRP grating 50 Micro, mesh 25 × 25 mm
Height: 50 mm, mesh inner dimension: 17 × 17 mm
GRP grating 50 Heavy Duty, mesh 38 × 38 mm
Height: 50 mm, mesh inner dimension: 26 × 26 mm
GRP grating 60 heavy-duty, mesh 38 × 38 mm
Height: 60 mm, mesh inner dimension: 26 × 26 mm
GRP Grating 14 Micro – fine-mesh grating for demanding environments.

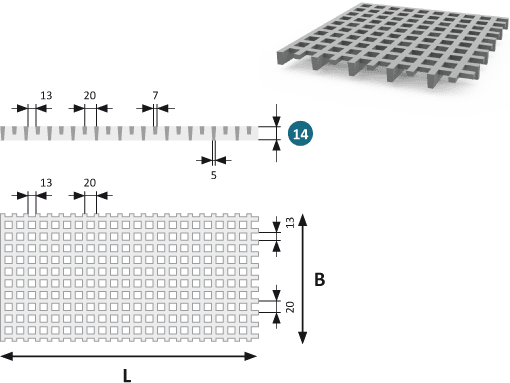

GRP Grating 14 Micro is a fine-mesh grating with a height of only 14 mm and a mesh size of 20×20 mm (13×13 mm internal). The grating is made of glass fiber reinforced plastic (GRP) and is ideal for environments where slip resistance, chemical resistance, and low installation height are crucial.
The dense structure makes it ideal for walkways where small objects must not fall through – for example in water and wastewater facilities, process industries, technical rooms, walkways, or public environments.
Features and benefits:
- Fine mesh design – mesh size 20×20 mm (13×13 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 191 | 2 x F | 1.021 | 3 x q | |
| 450 | 84 | 3 x F | 300 | 4 x q | |
| 600 | 47 | 4 x F | 126 | 5 x q | |
| 750 | 31 | 5 x F | 65 | 7 x q | |
| 900 | 21 | 6 x F | 38 | 8 x q | |
| 1.000 | 17 | 7 x F | 28 | 9 x q | |
| 1.200 | 12 | 8 x F | 16 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.047 | 1.247 | 10,5 |
Other dimensions are available on request. Contact us for more info.
