GRP Grating 25 – open and robust fiberglass grating.

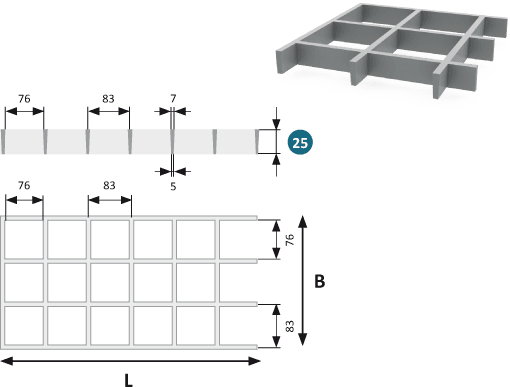

GRP Grating 25 with an 83×83 mm mesh (internal 76×76 mm) is a strong grating made of glass fiber reinforced plastic (GRP), designed to provide high drainage capacity and good mechanical stability in a low-profile structure. With a height of 25 mm, it is especially suitable for constructions where efficient water drainage and low weight are important.
Features and benefits:
- Coarse mesh 83×83 mm (76×76 mm internally) – provides maximum drainage
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 486 | 2 x F | 2.595 | 3 x q |
| 450 | 214 | 3 x F | 763 | 4 x q |
| 600 | 120 | 4 x F | 321 | 5 x q |
| 750 | 77 | 5 x F | 164 | 7 x q |
| 900 | 53 | 6 x F | 95 | 8 x q |
| 1.000 | 43 | 7 x F | 69 | 9 x q |
| 1.200 | 30 | 8 x F | 40 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.007 | 1.007 | 5,8 |
Other dimensions are available on request. Contact us for more info.
