GRP Grating 30 Micro – extra dense grating for maximum safety.

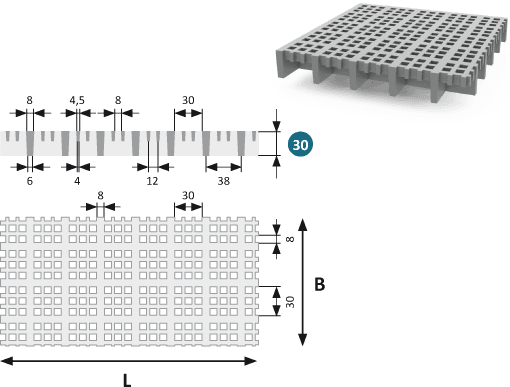

GRP Grating 30 Micro with 8 × 8 mm mesh (30 × 30 mm over 4 meshes) and a 30 mm profile height is a dense and extremely robust grating made of glass fiber reinforced plastic (GRP). The fine mesh structure prevents even very small objects from falling through.
The grating combines high load-bearing capacity with excellent slip resistance and corrosion resistance, making it suitable for use in industrial environments, technical rooms, cleanrooms, food production and public areas with high safety requirements.
Features and benefits:
- Extra fine mesh structure (8×8 mm)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rusting, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 1.989 | 2 x F | 10.610 | 3 x q |
| 450 | 878 | 3 x F | 3.120 | 4 x q |
| 600 | 492 | 4 x F | 1.310 | 5 x q |
| 750 | 314 | 5 x F | 670 | 7 x q |
| 900 | 218 | 6 x F | 386 | 8 x q |
| 1.000 | 176 | 7 x F | 282 | 9 x q |
| 1.200 | 122 | 8 x F | 163 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 3.660 | 1.220 | 22 |
| 1.988 | 998 | 22 |
Other dimensions are available on request. Contact us for more info.
