GRP grating 50 Micro, mesh 25 × 25 mm

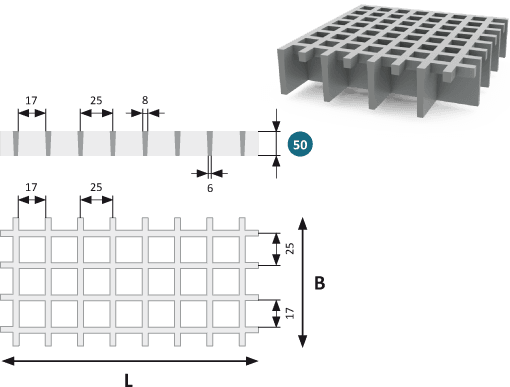

Height: 50 mm, mesh inner dimension: 17 × 17 mm
GRP Grating 50 Micro – extra heavy-duty and fine-mesh grating for maximum safety and load capacity.
GRP Grating 50 Micro is a very robust grating made of glass fiber reinforced plastic (GRP), with a height of 50 mm and a dense 25 × 25 mm mesh structure (17 × 17 mm inner size). The grating combines extremely high load-bearing capacity with a fine-mesh design.
It is particularly suitable for heavy industrial environments, technical installations and public areas where both personal safety and structural performance are essential. The GRP material’s resistance to corrosion, moisture, chemicals and UV radiation makes it a reliable and maintenance-free solution for both indoor and outdoor applications.
Features and benefits:
- Extra high profile – 50 mm – for very high load-bearing capacity and stability
- Fine mesh structure 25×25 mm (17×17 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 9.788 | 2 x F | 52.206 | 3 x q | |
| 450 | 4.320 | 3 x F | 15.363 | 4 x q | |
| 600 | 2.422 | 4 x F | 6.459 | 5 x q | |
| 750 | 1.547 | 5 x F | 3.300 | 7 x q | |
| 900 | 1.072 | 6 x F | 1.907 | 8 x q | |
| 1.000 | 868 | 7 x F | 1.389 | 9 x q | |
| 1.200 | 602 | 8 x F | 803 | 10 x q | |
| 1.300 | 513 | 8 x F | 631 | 10 x q | |
| 1.400 | 442 | 8 x F | 505 | 10 x q | |
| 1.500 | 385 | 8 x F | 410 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.000 | 1.524 | 28,5 |
Other dimensions are available on request. Contact us for more info.
