GRP Grating 38 – powerful and stable grating for demanding environments.

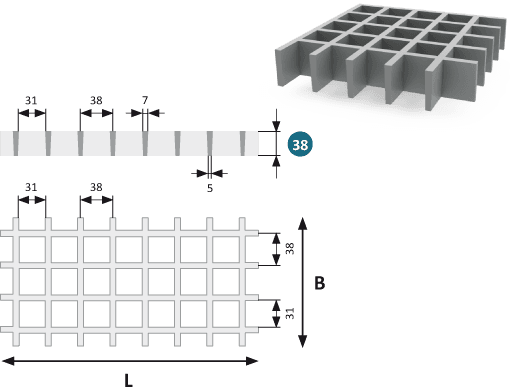

GRP Grating 38 is a strong and durable grating made of glass fiber reinforced plastic (GRP), with a height of 38 mm and 38 × 38 mm mesh (31 × 31 mm inner size). The grating offers very good load-bearing capacity and long service life – while being significantly lighter than comparable steel products.
Thanks to its high profile and robust construction, it is ideal for walkways, platforms and work surfaces in industry, water and wastewater, energy facilities and other demanding environments where both strength and corrosion resistance are required.
Features and benefits:
- Standard mesh 38×38 mm (31×31 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 3.500 | 2 x F | 18.600 | 3 x q | |
| 450 | 1.550 | 3 x F | 5.500 | 4 x q | |
| 600 | 870 | 4 x F | 2.340 | 5 x q | |
| 750 | 560 | 5 x F | 1.190 | 7 x q | |
| 900 | 387 | 6 x F | 690 | 8 x q | |
| 1.000 | 314 | 7 x F | 503 | 9 x q | |
| 1.200 | 218 | 8 x F | 290 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.002 | 998 | 19,5 |
| 4.000 | 1.524 | 19,5 |
| 3.050 | 1.524 | 19,5 |
| 3.660 | 1.220 | 19,5 |
| 3.016 | 998 | 19,5 |
| 2.440 | 1.220 | 19,5 |
| 1.988 | 998 | 19,5 |
| 998 | 998 | 19,5 |
Other dimensions are available on request. Contact us for more info.
