GRP Grating 38 – robust grating with an elongated mesh.

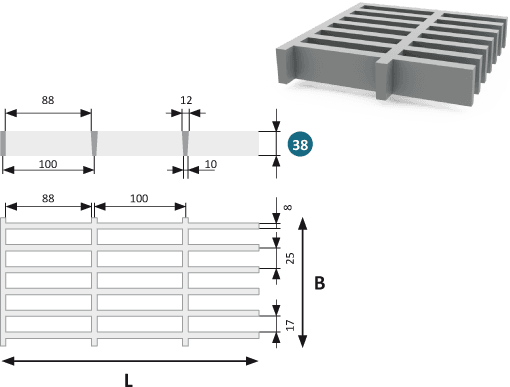

GRP Grating 38 with 100 × 25 mm mesh (88 × 17 mm inner size) and a height of 38 mm is a strong and drainage-optimized grating made of glass fiber reinforced plastic (GRP). The elongated mesh structure provides excellent water runoff, while the high profile ensures outstanding load-bearing capacity and stability even under heavy loads.
Resistant to corrosion, chemicals, moisture and UV radiation. It is therefore suitable for use in water and wastewater facilities, the chemical industry, process environments and technical areas – both indoors and outdoors.
Features and benefits:
- Long narrow mesh 100×25 mm (88×17 mm internally)
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 1.686 | 2 x F | 8.996 | 3 x q |
| 450 | 744 | 3 x F | 2.647 | 4 x q |
| 600 | 417 | 4 x F | 1.113 | 5 x q |
| 750 | 266 | 5 x F | 568 | 7 x q |
| 900 | 184 | 6 x F | 328 | 8 x q |
| 1.000 | 149 | 7 x F | 239 | 9 x q |
| 1.200 | 104 | 8 x F | 138 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 3.660 | 1.220 | 22,5 |
Other dimensions are available on request. Contact us for more info.
