GRP grating 38 Micro, mesh 20 × 20 mm

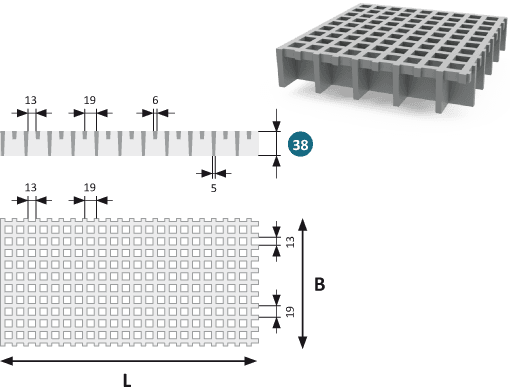

Height: 38 mm, mesh inner dimension: 13 × 13 mm
GRP Grating 38 Micro – high load capacity and fine-mesh protection.
GRP Grating 38 Micro combines a high profile of 38 mm with a dense 20 × 20 mm mesh structure (13 × 13 mm inner size), making it an ideal choice for environments where both high load-bearing capacity and protection against falling small objects are important. It is made of glass fiber reinforced plastic (GRP), resulting in low weight, excellent chemical and corrosion resistance, and an extremely long service life without maintenance.
It is widely used in industry, water and wastewater, energy facilities and electrical installations where operational reliability and a safe working environment are essential.
Features and benefits:
- High profile, 38 mm – withstands high loads while maintaining stability
- Fine mesh design – 20×20 mm (13×13 mm internally) – prevents small objects from falling through
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|
|---|---|---|---|---|---|
| 300 | 3.570 | 2 x F | 19.042 | 3 x q | |
| 450 | 1.570 | 3 x F | 5.600 | 4 x q | |
| 600 | 880 | 4 x F | 2.350 | 5 x q | |
| 750 | 564 | 5 x F | 1.203 | 7 x q | |
| 900 | 391 | 6 x F | 695 | 8 x q | |
| 1.000 | 316 | 7 x F | 506 | 9 x q | |
| 1.200 | 219 | 8 x F | 292 | 10 x q | |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | |||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.000 | 1.524 | 23,5 |
| 3.660 | 1.220 | 23,5 |
| 3.016 | 998 | 23,5 |
| 1.988 | 998 | 23,5 |
Other dimensions are available on request. Contact us for more info.
