Home / Fiberglass / GRP Plastic Grating / All fiberglass gratings / GRP Grating 30 Heavy Duty, mesh 38 × 38 mm
Fiberglass grating.
GRP Grating 30 Heavy Duty, mesh 38 × 38 mm
Height: 30 mm, mesh inner dimension: 28 × 28 mm
GRP Grating 14 Micro, mesh 20×20 mm
Height: 14 mm, internal mesh size: 13×13 mm
GRP grating 15, mesh 51×51 mm
Height: 15 mm, internal mesh size: 44×44 mm
GRP grating 25, mesh 20×20 mm
Height: 25 mm, internal mesh size: 13×13 mm
GRP grating 25 Micro, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP Grating 25, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP grating 25, mesh 83×83 mm
Height: 25 mm, Mesh inner dimensions: 76×76 mm
GRP grating 30, mesh 38×38 mm
Height: 30 mm, Mesh inner dimensions: 31×31 mm
GRP grating 30 Micro, mesh 20 × 20 mm
Height: 30 mm, mesh inner dimension: 14 × 14 mm
GRP Gallerdurk 30 Micro, Maska 8x8mm
Height: 30 mm, outer mesh dimension (4 meshes): 30 × 30 mm
GRP grating 30, mesh 100 × 25 mm
Height: 30 mm, mesh inner dimension: 93 × 18 mm
GRP Grating 30 Heavy Duty, mesh 38 × 38 mm
Height: 30 mm, mesh inner dimension: 28 × 28 mm
GRP grating 35 Heavy Duty, mesh 38 × 38 mm
Height: 35 mm, mesh inner dimension: 28 × 28 mm
GRP grating 38, mesh 38 × 38 mm
Height: 38 mm, mesh inner dimension: 31 × 31 mm
GRP grating 38 Micro, mesh 20 × 20 mm
Height: 38 mm, mesh inner dimension: 13 × 13 mm
GRP Grating 38, mesh 100 × 25 mm
Height: 38 mm, mesh inner dimension: 88 × 17 mm
GRP grating 40, mesh 83 × 83 mm
Height: 40 mm, mesh inner dimension: 76 × 76 mm
GRP grating 50, mesh 50 × 50 mm
GRP grating 50, mesh inner dimension 42 × 42 mm
GRP grating 50 Micro, mesh 25 × 25 mm
Height: 50 mm, mesh inner dimension: 17 × 17 mm
GRP grating 50 Heavy Duty, mesh 38 × 38 mm
Height: 50 mm, mesh inner dimension: 26 × 26 mm
GRP grating 60 heavy-duty, mesh 38 × 38 mm
Height: 60 mm, mesh inner dimension: 26 × 26 mm
GRP Grating 30 Heavy Duty – extra strong grating for heavy industry and high loads.

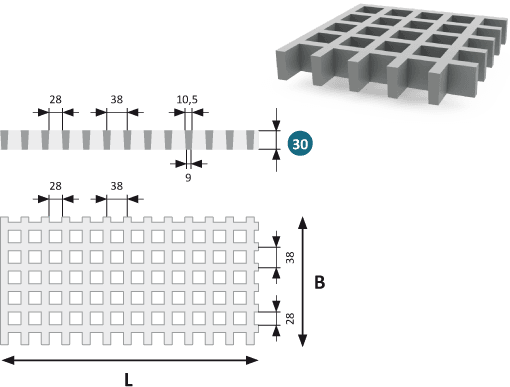

GRP Grating 30 Heavy Duty is a reinforced grating made of glass fiber reinforced plastic (GRP), developed for environments and constructions where high load-bearing capacity and durability are required. Profile height 30 mm and mesh size 38 × 38 mm (28 × 28 mm inner size). Extreme strength and mechanical performance.
The grating is designed for heavy industrial environments, such as platforms, walkways and work areas where loads from machinery, equipment or intensive traffic occur.
Features and benefits:
- Reinforced construction – designed for high loads and intensive use
- 30 mm height – robust and stable without compromising on build height
- Corrosion resistant – withstands moisture, chemicals and aggressive environments
- Lightweight – easy to handle and install
- Maintenance-free – no painting, no rust, no weathering
- Electrically insulating and non-magnetic – safe for electrical installations
- Suitable for both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 2,837 | 2 x F | 15,135 | 3 x q |
| 450 | 1,252 | 3 x F | 4,453 | 4 x q |
| 600 | 702 | 4 x F | 1,872 | 5 x q |
| 750 | 448 | 5 x F | 956 | 7 x q |
| 900 | 311 | 6 x F | 552 | 8 x q |
| 1,000 | 251 | 7 x F | 402 | 9 x q |
| 1,200 | 174 | 8 x F | 232 | 10 x q |
| 1,300 | 149 | 8 x F | 183 | 10 x q |
| 1,400 | 128 | 8 x F | 146 | 10 x q |
| 1,500 | 112 | 8 x F | 119 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | W (mm) | Weight (kg/m2) | |
|---|---|---|---|
| 3,660 | 1,220 | 25 | |
| Other dimensions are available on request. Contact us for more info. | |||
