Fiberglass grating.
GRP Grating 25, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP Grating 14 Micro, mesh 20×20 mm
Height: 14 mm, internal mesh size: 13×13 mm
GRP grating 15, mesh 51×51 mm
Height: 15 mm, internal mesh size: 44×44 mm
GRP grating 25, mesh 20×20 mm
Height: 25 mm, internal mesh size: 13×13 mm
GRP grating 25 Micro, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP Grating 25, mesh 100×25 mm
Height: 25 mm, internal mesh size: 93×18 mm
GRP grating 25, mesh 83×83 mm
Height: 25 mm, Mesh inner dimensions: 76×76 mm
GRP grating 30, mesh 38×38 mm
Height: 30 mm, Mesh inner dimensions: 31×31 mm
GRP grating 30 Micro, mesh 20 × 20 mm
Height: 30 mm, mesh inner dimension: 14 × 14 mm
GRP Gallerdurk 30 Micro, Maska 8x8mm
Height: 30 mm, outer mesh dimension (4 meshes): 30 × 30 mm

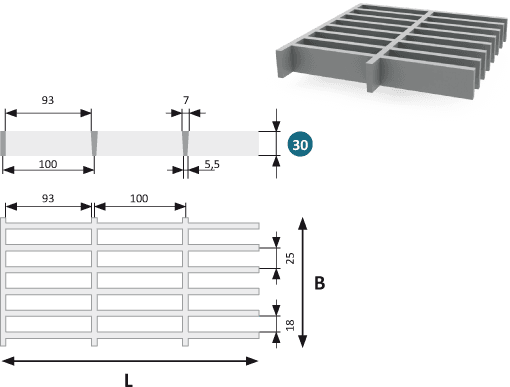

GRP grating 30, mesh 100 × 25 mm
Height: 30 mm, mesh inner dimension: 93 × 18 mm
GRP Grating 30 Heavy Duty, mesh 38 × 38 mm
Height: 30 mm, mesh inner dimension: 28 × 28 mm
GRP grating 35 Heavy Duty, mesh 38 × 38 mm
Height: 35 mm, mesh inner dimension: 28 × 28 mm
GRP grating 38, mesh 38 × 38 mm
Height: 38 mm, mesh inner dimension: 31 × 31 mm
GRP grating 38 Micro, mesh 20 × 20 mm
Height: 38 mm, mesh inner dimension: 13 × 13 mm
GRP Grating 38, mesh 100 × 25 mm
Height: 38 mm, mesh inner dimension: 88 × 17 mm
GRP grating 40, mesh 83 × 83 mm
Height: 40 mm, mesh inner dimension: 76 × 76 mm
GRP grating 50, mesh 50 × 50 mm
GRP grating 50, mesh inner dimension 42 × 42 mm
GRP grating 50 Micro, mesh 25 × 25 mm
Height: 50 mm, mesh inner dimension: 17 × 17 mm
GRP grating 50 Heavy Duty, mesh 38 × 38 mm
Height: 50 mm, mesh inner dimension: 26 × 26 mm
GRP grating 60 heavy-duty, mesh 38 × 38 mm
Height: 60 mm, mesh inner dimension: 26 × 26 mm
| Span width (mm) |
Concentrated load (kg) |
Safety (kg) factor |
Distributed load (kg/m2) |
Safety factor factor |
|---|---|---|---|---|
| 300 | 480 | 2 x F | 2.560 | 3 x q |
| 450 | 212 | 3 x F | 753 | 4 x q |
| 600 | 118 | 4 x F | 316 | 5 x q |
| 750 | 76 | 5 x F | 161 | 7 x q |
| 900 | 53 | 6 x F | 93 | 8 x q |
| 1.000 | 43 | 7 x F | 68 | 9 x q |
| 1.200 | 30 | 8 x F | 39 | 10 x q |
| The loads were determined at a bending of L/125. The bending L/125 corresponds to 0.75% bending of the span width (Bending f=L/125; L=span width). The application-specific suitability is to be tested individually. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 3.007 | 1.007 | 13 |
Other dimensions are available on request.
