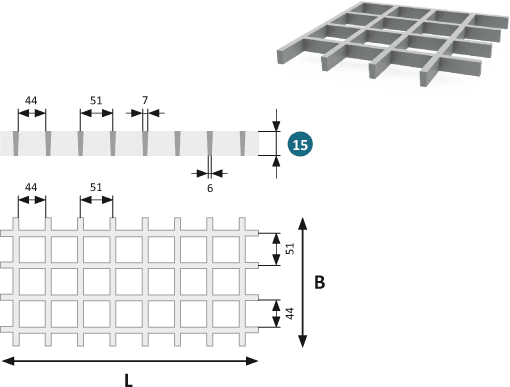

GRP grating 15, mesh 51×51 mm
Height: 15 mm, internal mesh size: 44×44 mm
GRP Grating 15 – lightweight, open, and cost-effective fiberglass grating.
GRP Grating 15 with a 51×51 mm mesh (internal 44×44 mm) is a lightweight and cost-effective grating made of glass fiber reinforced plastic (GRP). With its low profile of 15 mm and open structure, it provides good drainage and ventilation, making it suitable for dry or moderately humid environments where high load capacity is not the primary requirement.
The grating is easy to handle, install, and customize – making it an excellent choice for service walkways, platforms, technical areas, and other constructions where weight savings and fast installation are important.
Features and benefits:
- Lightweight – easy to handle and install
- Coarse mesh 51×51 mm (44×44 mm internally)
- Corrosion resistant – ideal in humid, chemical and aggressive environments
- Maintenance-free – no need for painting, rustproofing or refinishing
- Electrically insulating and non-magnetic – safe in sensitive installations
- For both indoor and outdoor use
| Span width (mm) |
Concentrated load (kg) |
Safety factor |
Distributed load (kg/m2) |
Safety factor |
|---|---|---|---|---|
| 300 | 195 | 2 x F | 1.050 | 3 x q |
| 450 | 87 | 3 x F | 310 | 4 x q |
| 600 | 49 | 4 x F | 130 | 5 x q |
| 750 | 31 | 5 x F | 66 | 7 x q |
| 900 | 21 | 6 x F | 38 | 8 x q |
| 1.000 | 17 | 7 x F | 28 | 9 x q |
| 1.200 | 12 | 8 x F | 16 | 10 x q |
| The loads are calculated on the basis of a deflection of L/125, which corresponds to 0,75 % of the span. (f = L/125; L = span). The suitability for the specific application should always be assessed on a case by case basis. | ||||
| L (mm) | B (mm) | kg/m2 |
|---|---|---|
| 4.000 | 1.220 | 5,8 |
| 3.660 | 1.220 | 5,8 |
| 1.990 | 1.020 | 5,8 |
Other dimensions are available on request. Contact us for more info.
