Guidance Strips KÅBO – Stainless Steel with Inlay – Tactile Guidance Bars and Stop Markings – Black and White

Tactile guidance bars and stop markings with colored inlays.Product series in stainless steel with polyurethane inlays.Three different mounting options.


Color


Product


Reverse side



Find a retailer

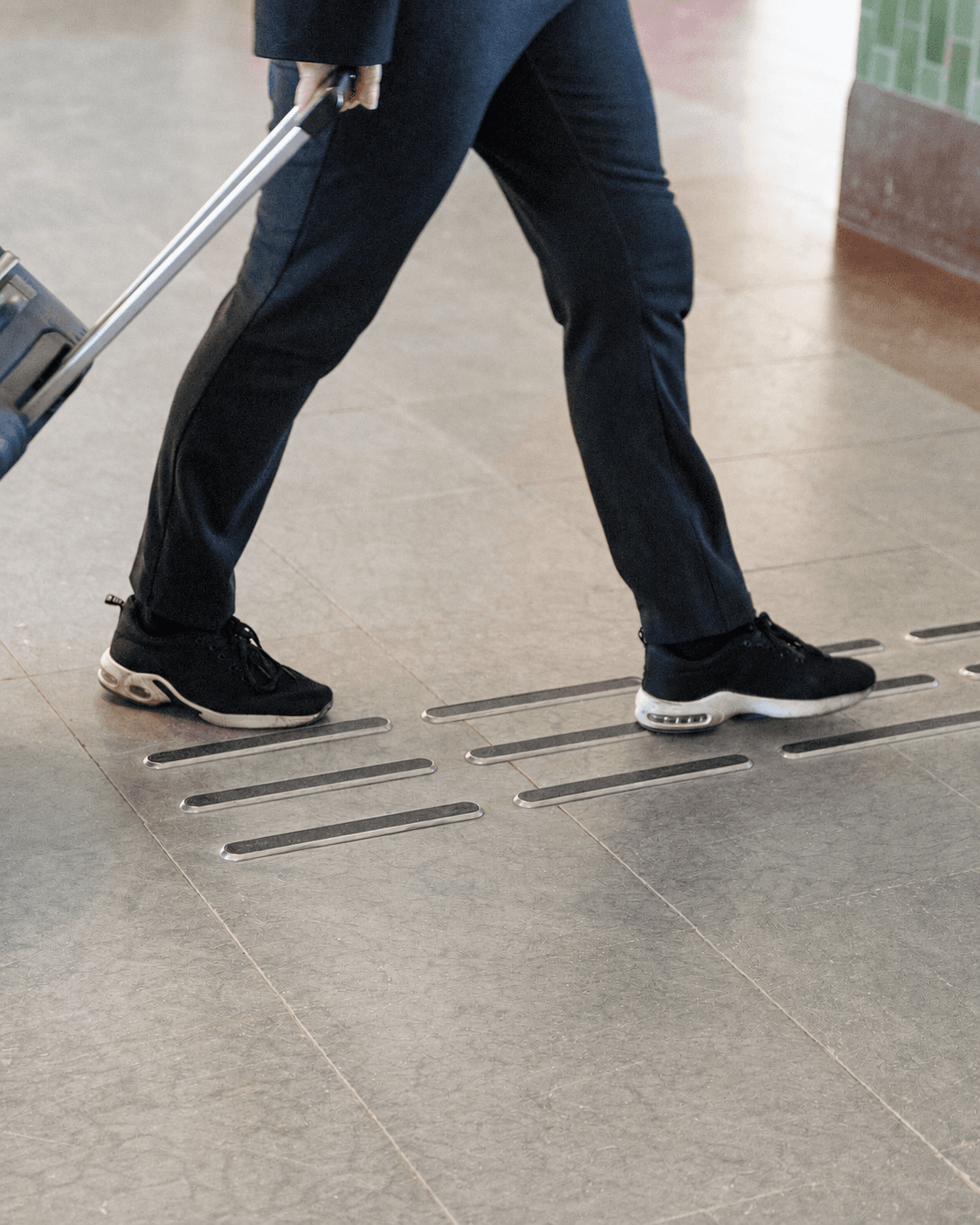

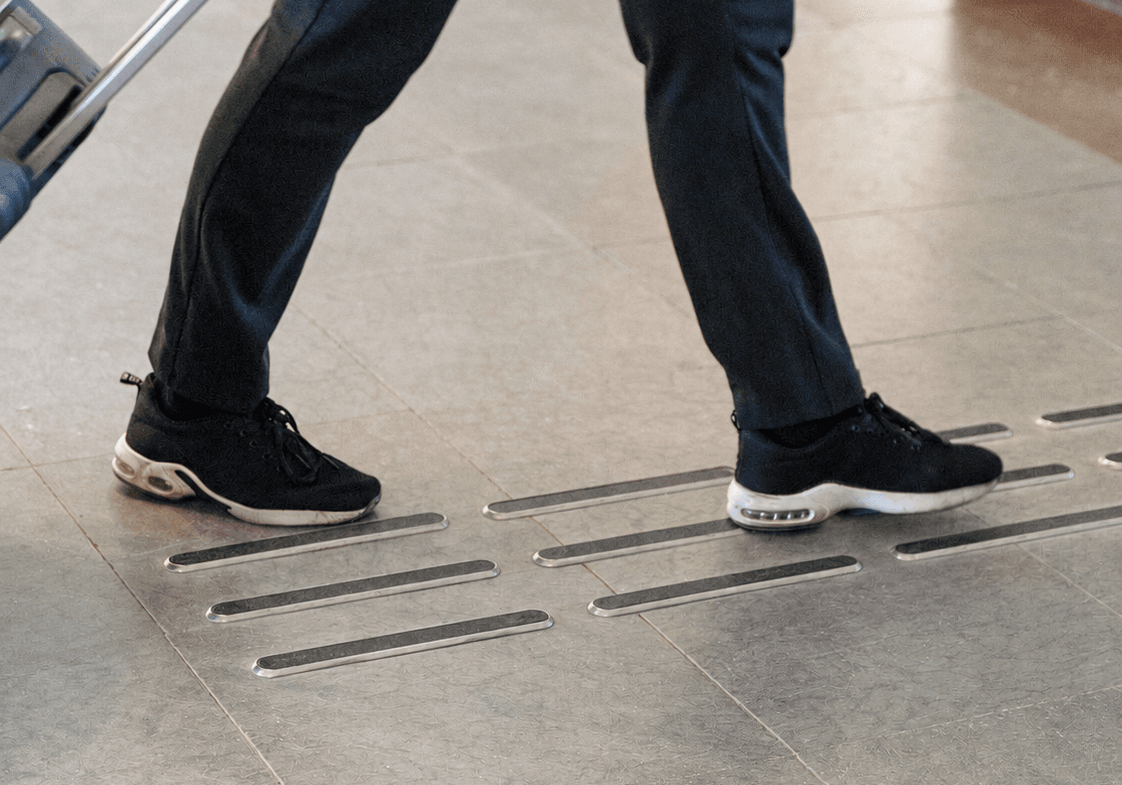

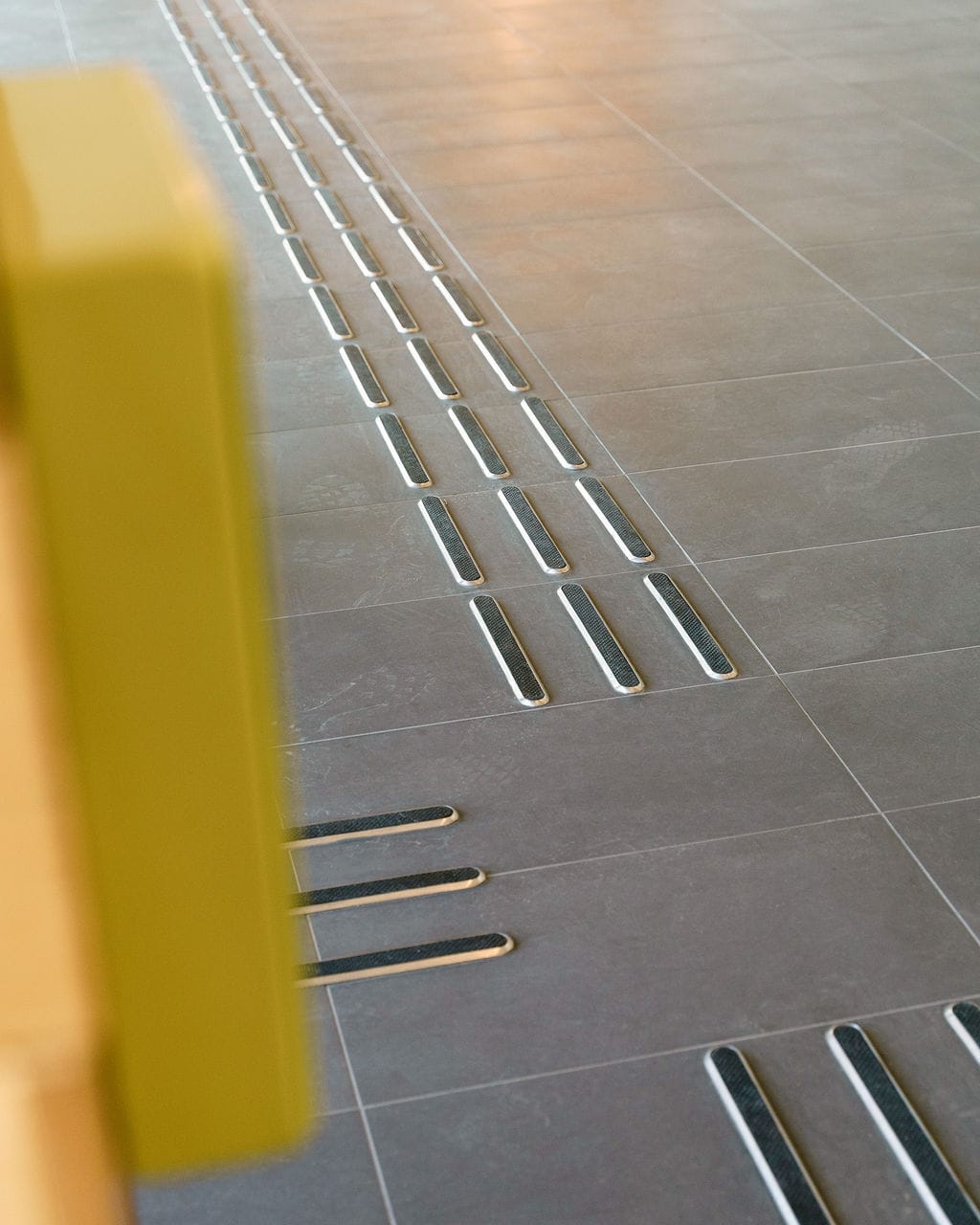

Tactile pathways are an important part of the accessibility of public buildings and premises. The pathways are both visual and tactile and lead to important destinations such as elevators, toilets, reception and stairwells.

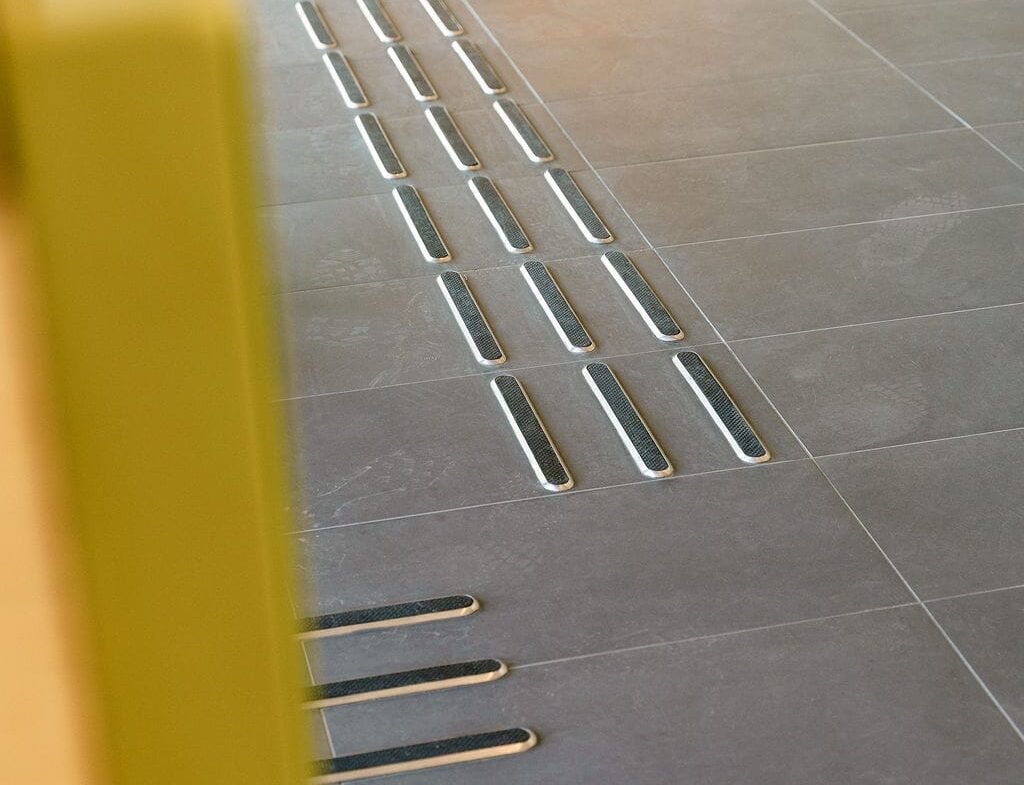

Tactile pathways with colored inserts.

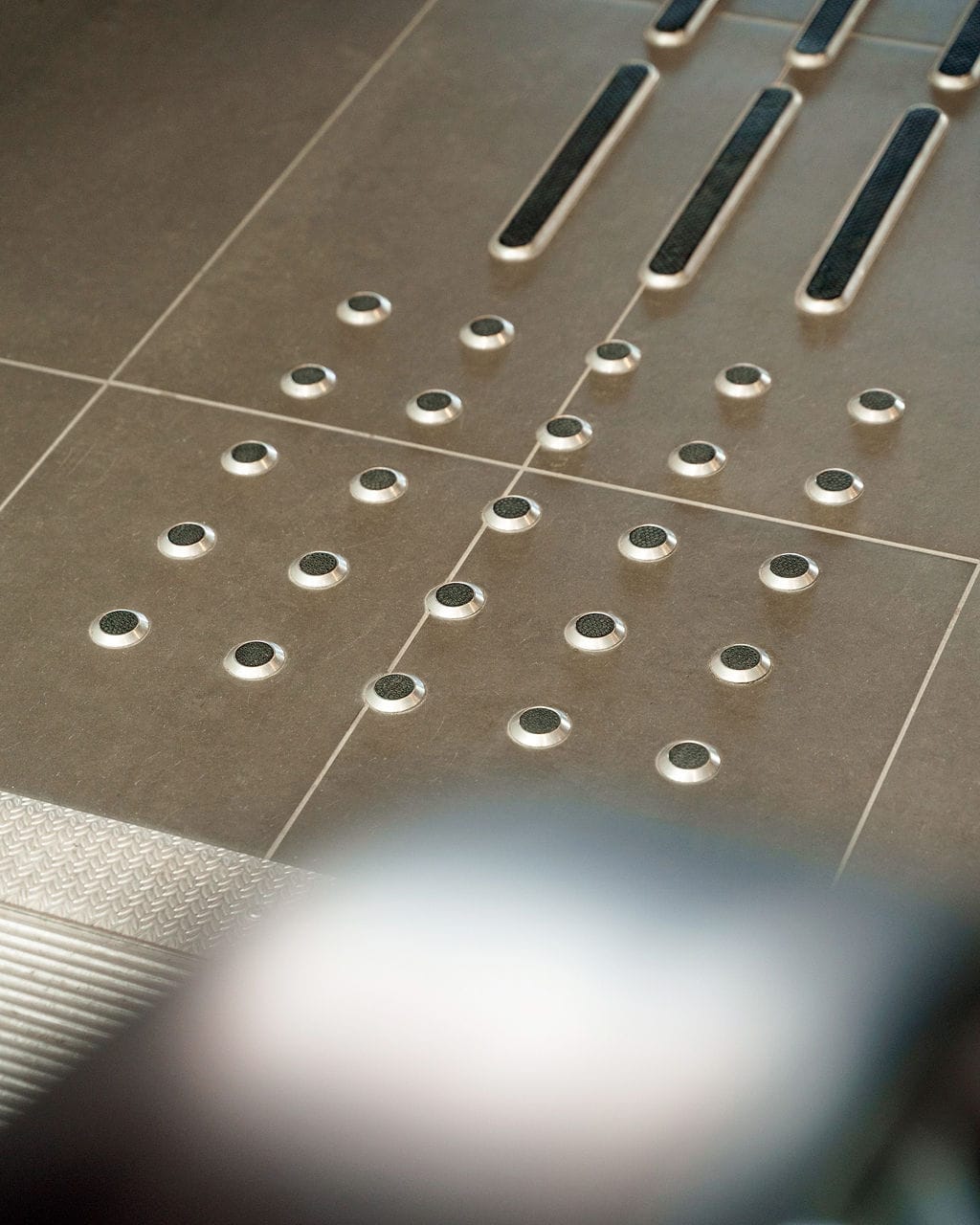

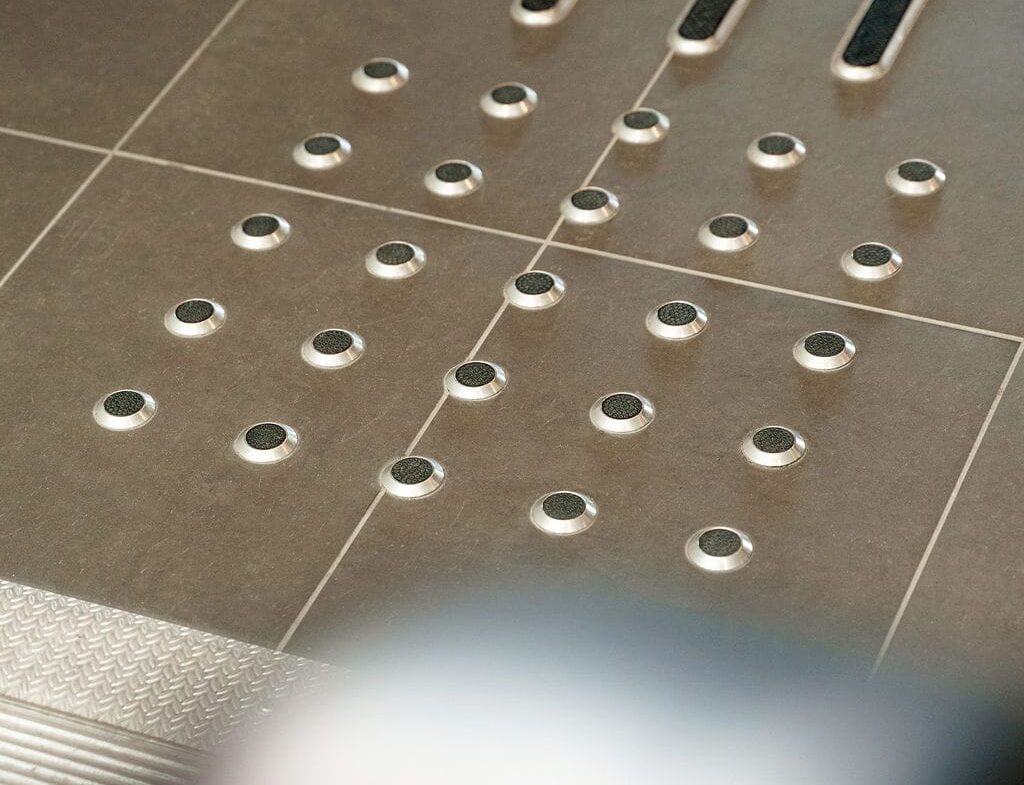

Safestep KÅBO is our product range in stainless steel with colored polyurethane inserts. The range includes tactile surface indicators, studs and contrast markings with different colors and fixings.

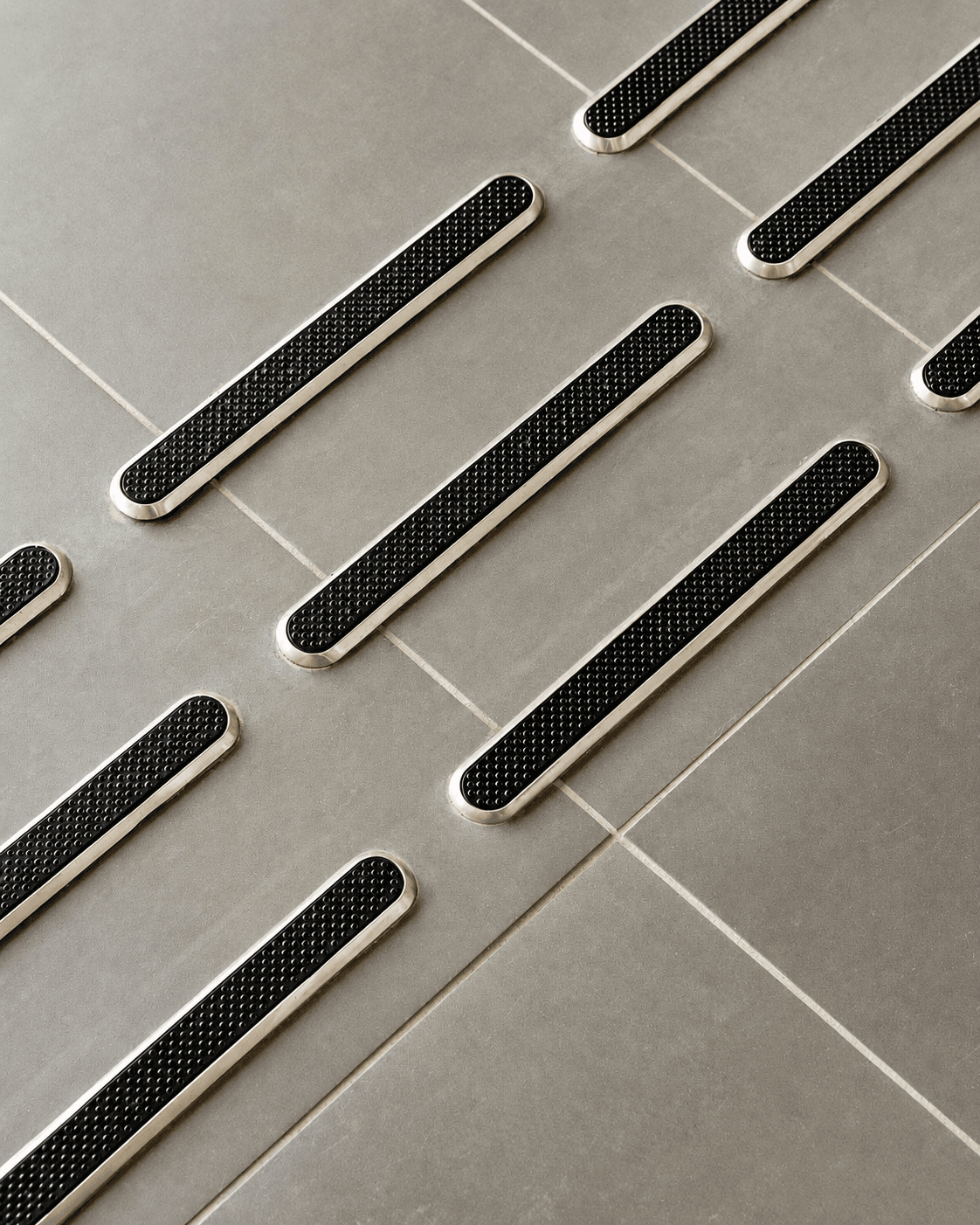

Stainless steel tactile markers are a maintenance-free option – durable, weather resistant and suitable for high traffic areas. The profiles are made of stainless steel and have a colored insert that allows them to provide exceptional contrast on both light and dark floors.

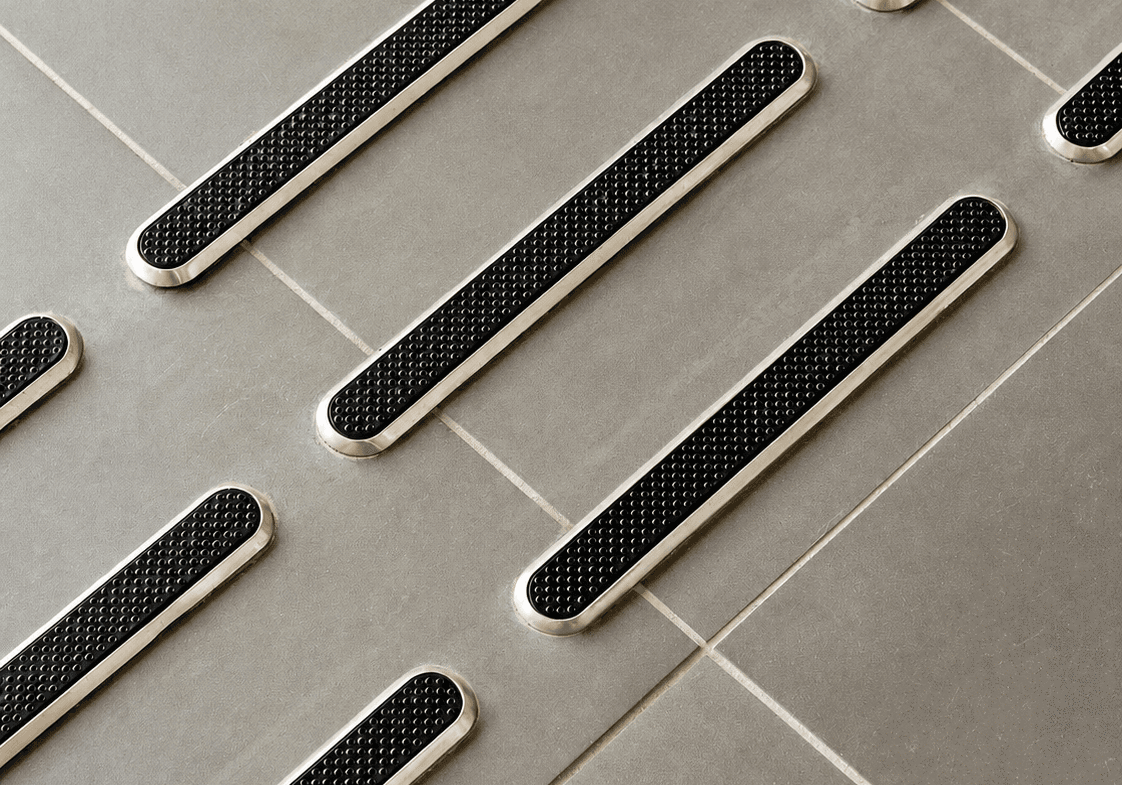

Black on white.

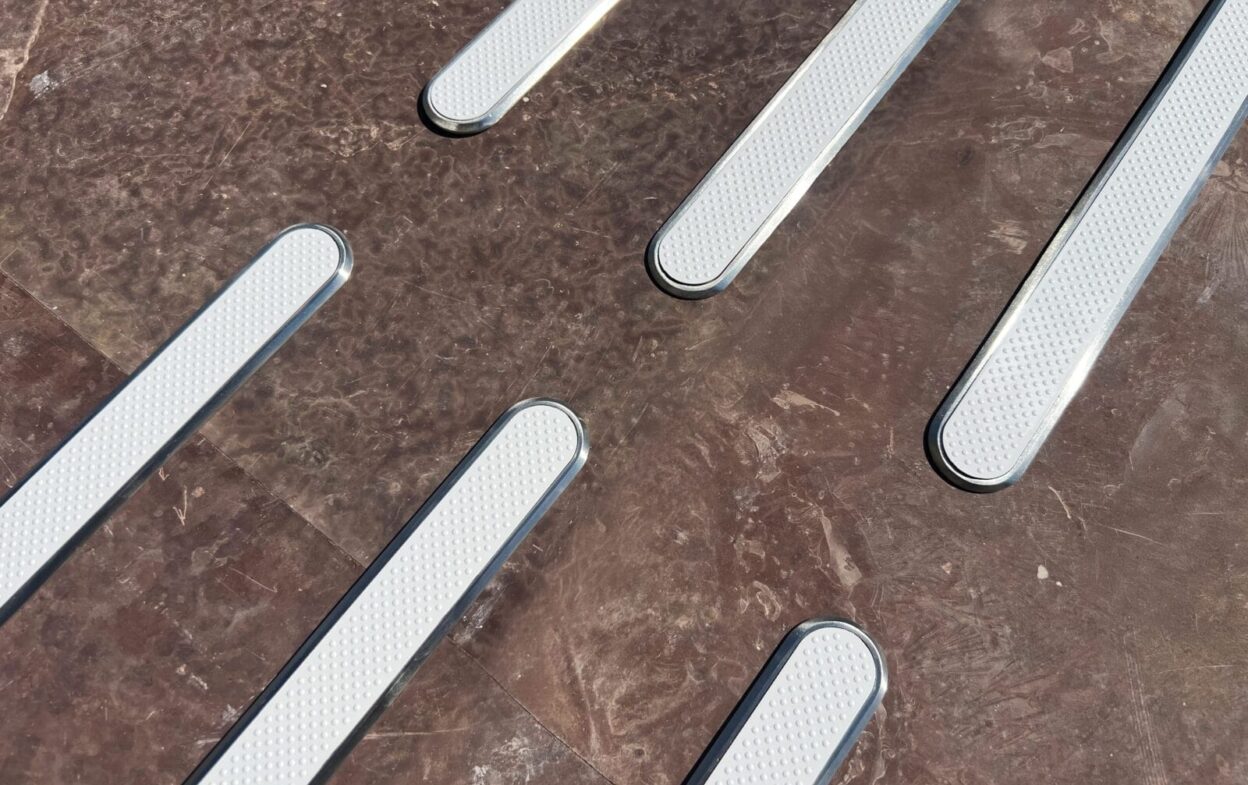

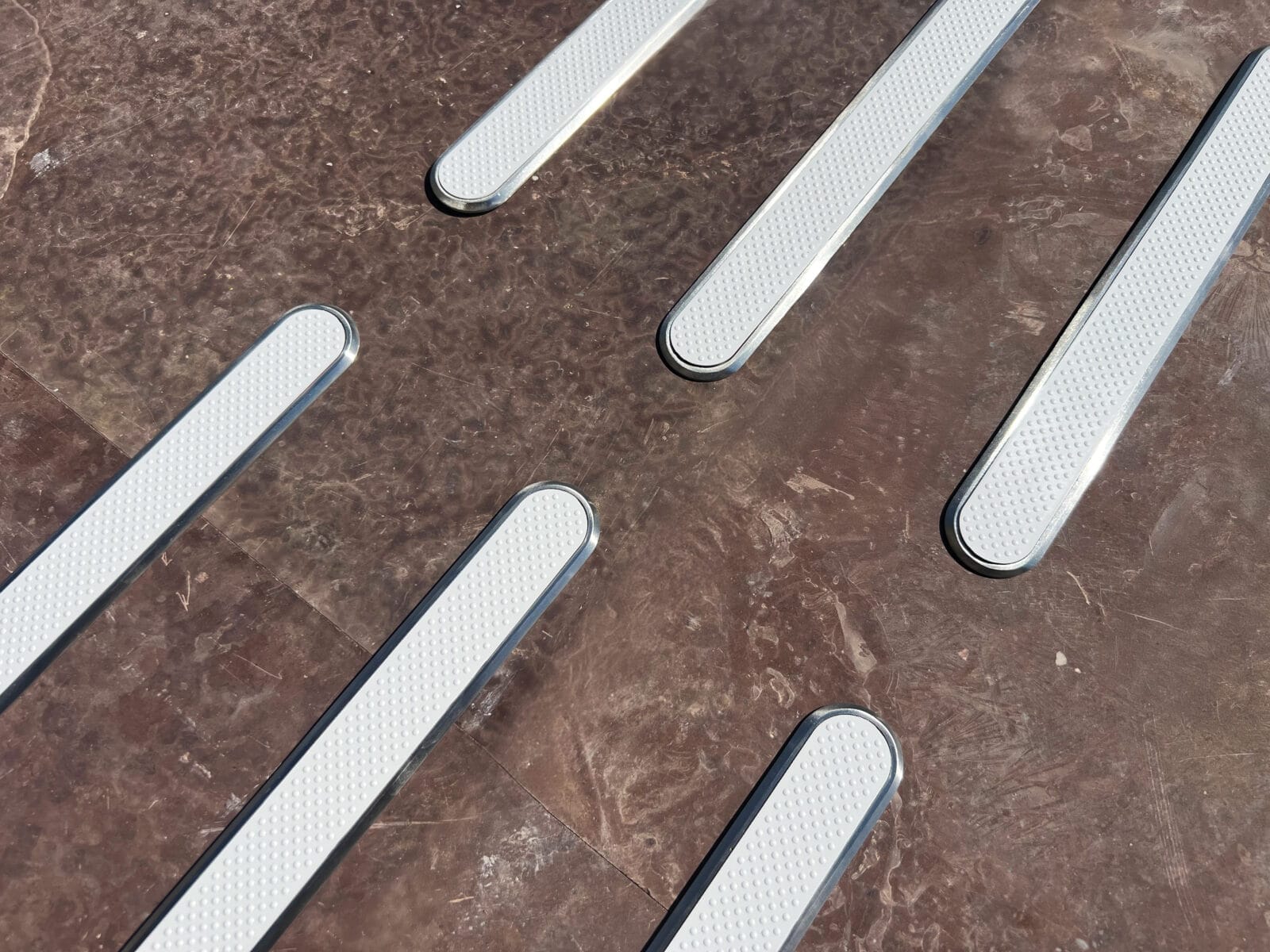

The inserts are available in white and black and have a perforated surface. The indicators are available in three different designs and can be mounted with 3M tape, screws or mounting glue.

Important to remember: Public premises should be provided with logical pathways that lead between selected target points. In open spaces such as station buildings, receptions and foyers, there should be coherent tactile and visual pathways. The paths should provide directional orientation and safely guide us in the right direction – past obstacles and to the destination points. The tactile indicators should also be installed with different materials and a brightness contrast of at least 0.4 NCS – either lighter or darker than the surroundings.

Illustration över fyra olika infästningsmetoder av taktila ledstavar

Teknisk info


Safestep KÅBO
Guide rod / stop mark

Black: LSI100
White: LSI200

280 x 35 x 4.5 mm

Black: LSI100S
White: LSI200S

35 x 4.5 mm

White / Black

Perforated

White: 0,96
Black: 0.15
